Marine Display and Panel PC

Marine displays and panel PC that feature industrial-rugged design. Compliance IEC60945 to ensure safety and performance. Winsonic Marine panel PC, display, edge computing products are all meet the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radio communication.

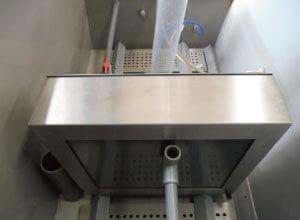

Corrosion (Salt Mist)
Marine display Corrosion (Salt Mist)

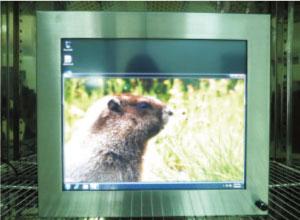

Dry Heat Test
Marine display Dry Heat Test

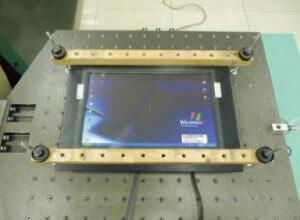

Vibration Test
Marine display Vibration Test
Damp Heat Test
Marine display Damp Heat Test

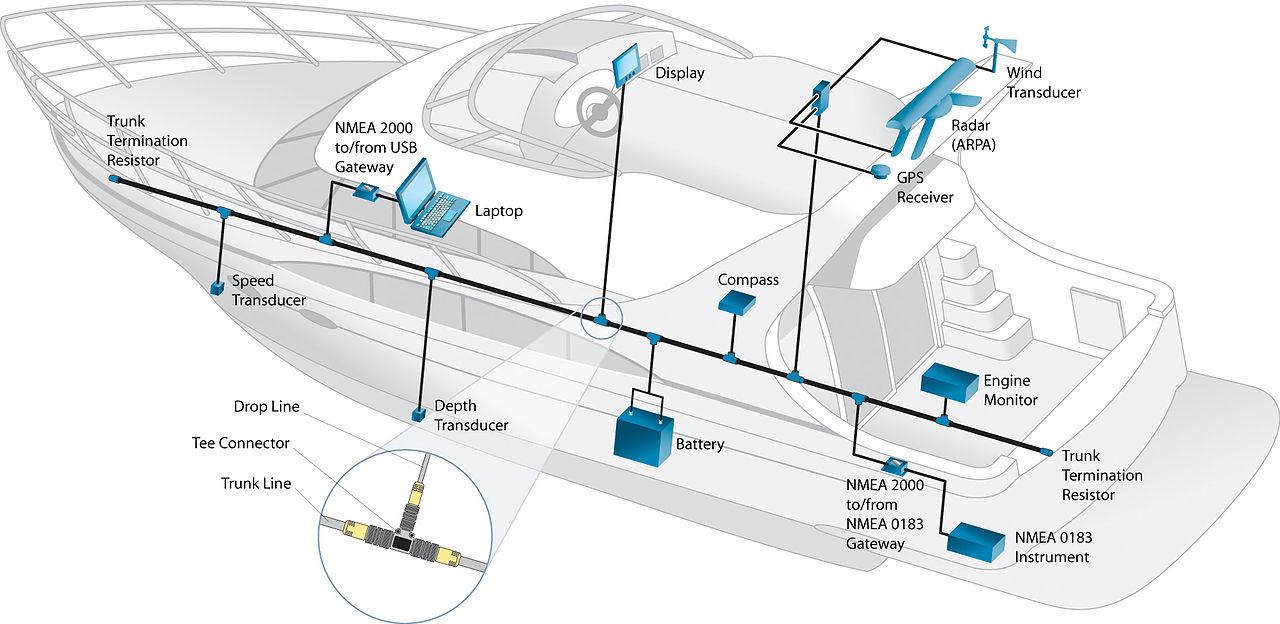

Marine NMEA2000 & Controller Area Network (CAN)

NMEA2000 (N2K) is a communication system that is easy to set up and use. It is a network of multiple devices that can send and receive data on a common bus. All devices are connected to each other through their inputs and outputs. NMEA 2000 uses the same high-level protocol as SAE J1939, but has its own specific messages. NMEA 2000 devices and J1939 devices can work together on the same network. This means that they can share the network bandwidth, and recognize and respond to each other's messages.
To install an NMEA 2000® network, you need to connect NMEA 2000® devices with cables and connectors that are plug-and-play.

Five basic steps:
  1. Cable and Connector Network Basics
  2. Installing Terminators
  3. Supplying Power
  4. Grounding the Network
  5. Checking the Network
Marine NMEA2000 & Controller Area Network (CAN)

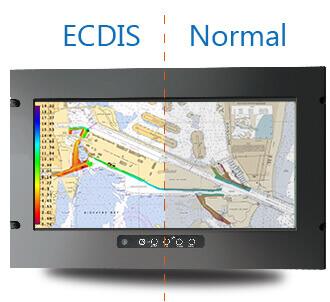

Winsonic offers a wide range of ECDIS monitors. For traditional applications we offer the marine display product families, available in 10.4”~24”. The Marine display family comes in a variety of configurations and is available for both console and table mounts.If you request ECDIS and Radar displays in 4:3 or wide screen format and we provide all the range of display and support data / dust / night mode.

Marine displayIEC60945
